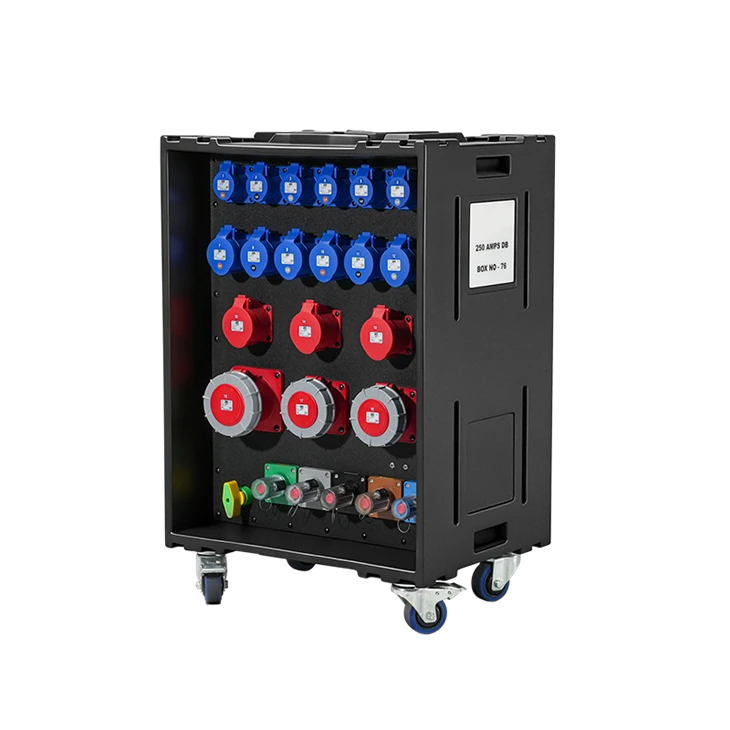

250A HDPE Power Distribution Unit
High-current electrical distribution system designed to receive power from a three-phase electrical supply and distribute it to multiple downstream circuits through individually protected outputs.
Main Components
1. HDPE Enclosure
The enclosure forms the mechanical and environmental protection layer of the distribution unit. HDPE is used because the material provides a combination of:
- Electrical insulation
- Resistance to moisture
- Resistance to corrosion
- Resistance to impact
- Relatively low enclosure weight
- Suitability for outdoor equipment
Compared with a metal enclosure, an HDPE housing does not itself form a conductive enclosure that requires bonding in the same way as exposed conductive metalwork. However, all exposed conductive electrical components, connectors and protective conductors still need to be correctly connected to the protective-earth system.
For outdoor use, the enclosure design, door sealing, cable glands and connector interfaces must be considered together when determining the final IP protection level.
2. 250A Main Circuit Breaker
The main breaker is normally selected according to the rated current and electrical characteristics of the distribution system. A typical configuration may use a 250A MCCB as the main protective device. Some commercially available 250A HDPE units use a 4-pole 250A MCCB for three-phase plus neutral distribution.
The MCCB can provide:
- Main circuit isolation
- Overcurrent protection
- Short-circuit protection
- Protection coordination with downstream devices
The trip characteristics should be selected according to the upstream supply, cable ampacity, prospective short-circuit current and downstream protection requirements.
3. Internal Busbar or Distribution Conductors
The internal distribution section transfers current from the main breaker to the outgoing circuits. For a 250A system, conductor dimensions and materials cannot be selected simply according to the nominal current. The design should consider:
- Continuous operating current
- Ambient temperature
- Enclosure temperature rise
- Conductor material
- Installation method
- Short-circuit withstand capability
- Connection method
- Phase loading
Copper busbars are commonly used in high-current distribution equipment, while cable-based internal distribution can be used for specific portable configurations.
4. Outgoing Circuit Protection
Each outgoing circuit should have protection appropriate to the connected load.
Typical devices include:
| Protection Device | Main Function |
|---|---|
| MCB | Branch overcurrent and short-circuit protection |
| MCCB | Higher-current circuit protection |
| RCD/RCCB | Residual-current protection |
| RCBO | Combined overcurrent and residual-current protection |
| Main Isolator | Overall power isolation |
A 250A incoming rating does not mean every outgoing socket can supply 250A. The available current is divided among multiple branch circuits, with each branch limited by its own protective device and connector rating.
5. Industrial Connectors
The outgoing section can be configured according to the application. Common options include:
- IEC 60309 industrial sockets
- IEC 60309 plugs
- High-current connectors
- Powerlock-type connectors
- Cable outlets
- Customized terminal connections
For example, a commercially documented 250A HDPE distribution box uses multiple 16A, 32A and 125A industrial socket outlets, with separate protection for each group.
The connector rating must always correspond to the circuit protection and cable capacity.
How Does a 250A HDPE Power Distribution Unit Work?
The basic power flow is:
Incoming Power → Main Isolation → 250A Main Protection → Internal Busbar/Distribution → Branch Protection → Outgoing Connectors → Loads
For a typical three-phase system, the incoming supply may contain:
L1 - Phase 1
L2 - Phase 2
L3 - Phase 3
N - Neutral
PE - Protective Earth
The incoming circuit first passes through the main isolator or main MCCB. The main protective device provides a means of disconnecting the distribution unit and protects the main distribution circuit against excessive current.
Power is then distributed through the internal busbar or conductor assembly to individual outgoing circuits. Each branch circuit is protected according to its connected load. For example, a smaller single-phase outlet may use an MCB or RCBO, while a higher-current three-phase outlet may require a dedicated MCB/MCCB and RCD arrangement.
For temporary installations, RCD protection may also be incorporated into appropriate outgoing circuits to provide additional protection against residual current faults.
Electrical Configuration
A typical 250A three-phase distribution architecture can be arranged as:
↓
250A Main MCCB
↓
Internal Distribution Busbar
↓
Branch MCB / MCCB / RCD / RCBO
↓
16A / 32A / 63A / 125A or Customized Outlets
↓
Downstream Electrical Loads
The exact output combination is configurable. A stage power system, construction site distribution unit and industrial temporary power system may require completely different outlet combinations even when their main incoming current is 250A.
HDPE Enclosure and IP Protection
For outdoor power distribution, the enclosure must protect internal electrical components from environmental conditions. Some 250A HDPE distribution units are manufactured with IP67 protection, which indicates protection against dust ingress and temporary immersion under the applicable test conditions.
However, the final IP rating is not determined by the HDPE material alone. The complete assembly must be considered, including:
If the enclosure is modified after manufacture, the resulting IP protection can differ from the original tested configuration.
Typical Technical Parameters
The following parameters can be used as a reference structure for a product specification. Actual values should be confirmed according to the specific model.
| Parameter | Typical Configuration |
|---|---|
| Product Type | 250A HDPE Power Distribution Unit |
| Rated Current | 250A |
| Supply Type | Three Phase |
| Supply Configuration | 3P+N+E |
| Main Protection | 250A MCCB |
| Enclosure Material | HDPE / PE |
| Protection Rating | Up to IP67, depending on configuration |
| Outgoing Protection | MCB / MCCB / RCD / RCBO |
| Outlets | IEC 60309 / High-current connectors / Customized |
| Installation | Portable / Temporary / Outdoor |
| Application | Construction, events, industrial sites, temporary power |
| Enclosure Configuration | Customized according to circuit layout |
| Operating Conditions | To be specified according to enclosure and component ratings |
A documented 250A HDPE model, for example, uses a 630 × 430 × 900 mm enclosure, IP67 protection and a 250A four-pole MCCB, although these dimensions should not be treated as universal specifications for every 250A unit.
Load Distribution and Phase Balancing
For a three-phase 250A power distribution system, phase balancing is an important part of the electrical design. If a large number of single-phase loads are connected to only one phase, the current on that phase can become substantially higher than the other phases. This can increase voltage drop, conductor heating and neutral current depending on the load characteristics.
A properly designed distribution unit should therefore assign single-phase outlets across L1, L2 and L3 as evenly as practical.
- L1 → Single-phase circuits A, D, G
- L2 → Single-phase circuits B, E, H
- L3 → Single-phase circuits C, F, I
Three-phase loads should be connected across all three phases.
The actual circuit allocation should be based on the expected load profile rather than simply dividing the number of sockets equally.
Applications
A 250A HDPE Power Distribution Unit is suitable for applications requiring a high-current temporary or portable power distribution point, including:
Construction Sites
It can receive power from a generator, temporary site supply or high-current feeder and divide it into multiple protected circuits for construction equipment, tools, lighting and temporary facilities.
Events and Stage Power
Large events may have separate electrical loads for stage lighting, audio equipment, video systems, catering equipment and temporary infrastructure. A centralized 250A distribution unit can provide multiple protected branch circuits from one incoming supply.
Industrial Temporary Power
Factories, workshops and maintenance projects may require temporary power during equipment installation, plant modification or maintenance shutdowns.
Outdoor & Infrastructure
HDPE enclosures can be considered for outdoor environments where electrical equipment may encounter rain, dust, moisture and mechanical handling.
Generator Power Distribution
The unit can be installed downstream of a suitable generator to divide generator output into multiple branch circuits.
What Should Buyers Check Before Ordering?
For B2B procurement, the following information should be confirmed before selecting a 250A distribution unit:
The 250A rating describes the capacity of the main distribution system; it does not by itself determine the permissible load of every outlet or guarantee that the unit can be connected to any 250A supply.
Installation and Maintenance
Before installation, verify the incoming voltage, phase sequence, protective-earth connection, cable rating, breaker settings and connector compatibility.
The distribution unit should be installed on a stable surface with sufficient clearance around cable entries, switches and connectors. For mobile applications, the enclosure should be positioned so that cables do not create excessive mechanical loads on plugs, sockets or glands.
Routine inspection should include:
Any abnormal heating, loose connection, damaged insulation or cracked enclosure should be investigated before continued operation.
